SPECIFICATIONS

Applicable disc brakes: 180mm

Braking System: Brake Line

Brand Name: NoEnName_Null

Cable Length: 930mm

Components: Disc Brake

Hign-concerned Chemical: None

Model Number: Top Quality Brake Levers

Origin: Mainland China

Use: Mountain Bikes,Cruisers,Road Bicycles,Kids' Bikes,hydraulic brake

Front Brake support dual calipers, brake left and right sides together, please kindly check whether your front wheel hub and front fork support such installation. If you need, we can also sell you these parts

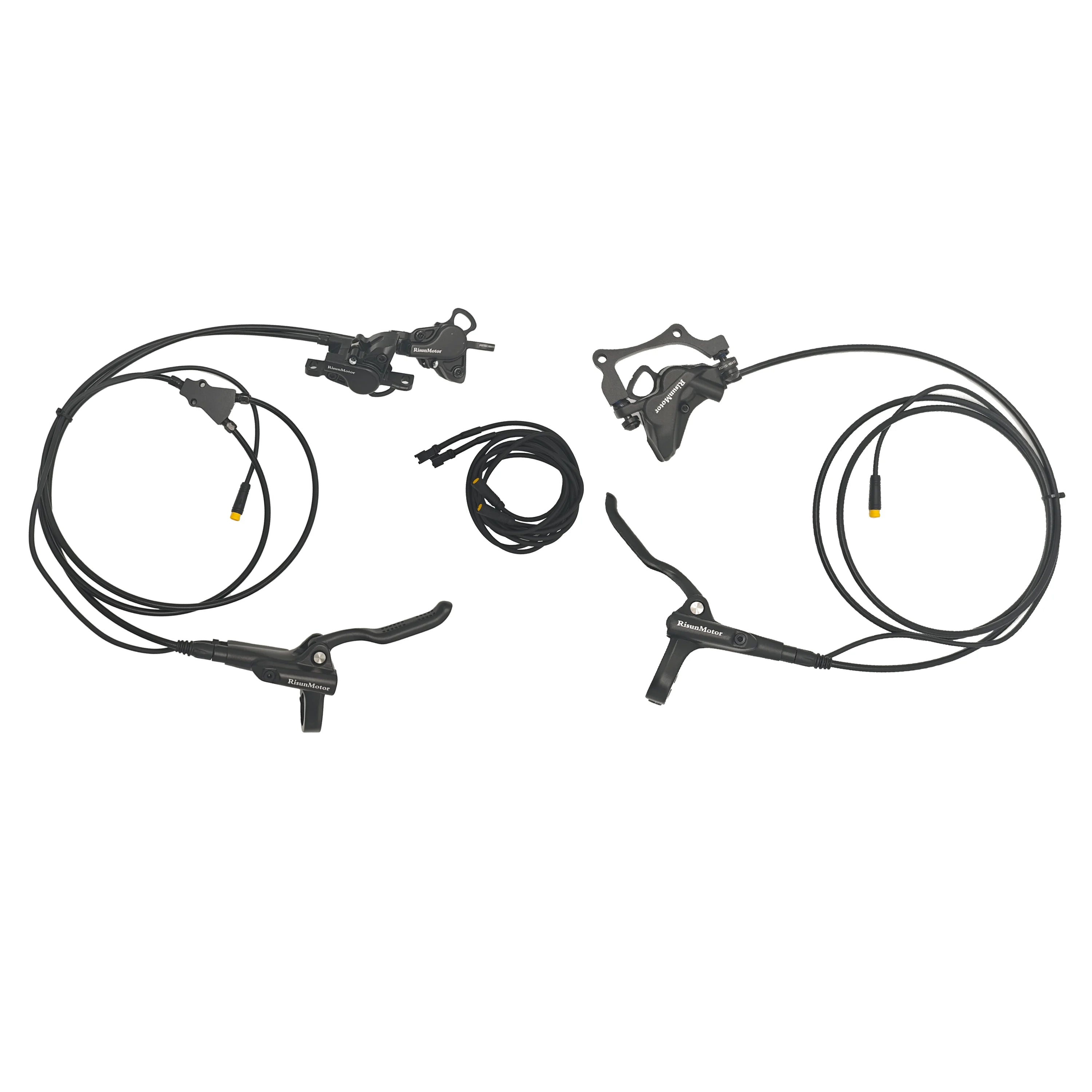

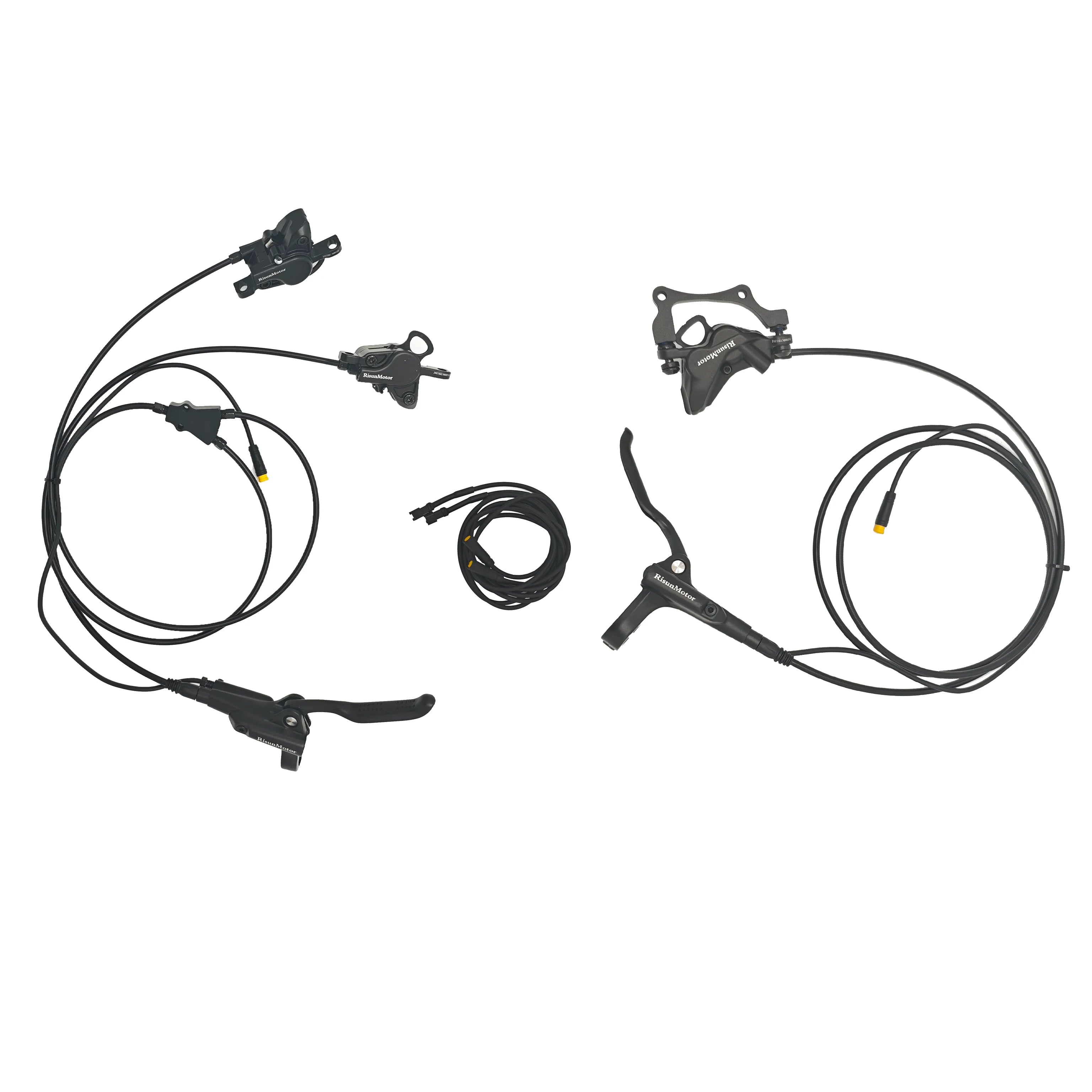

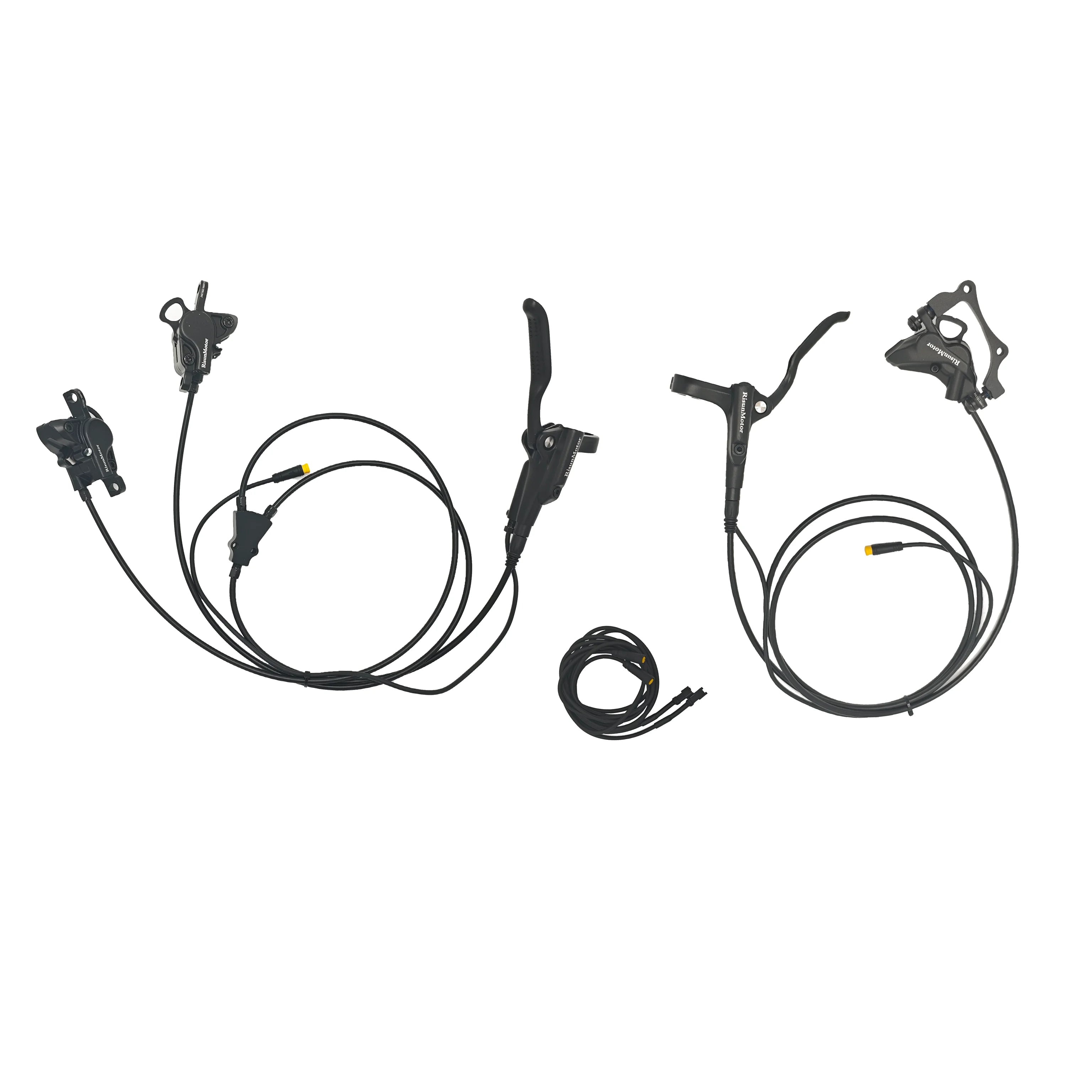

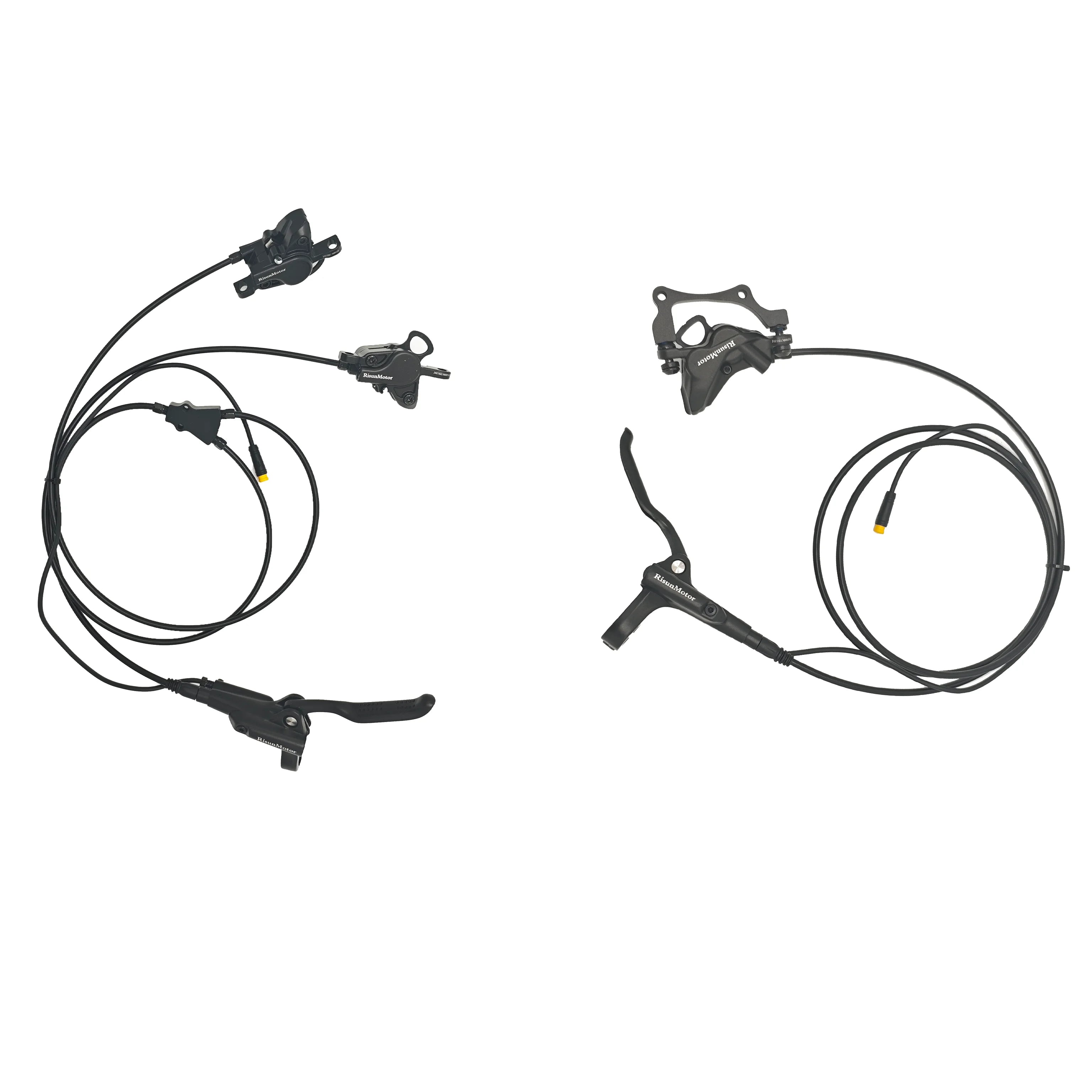

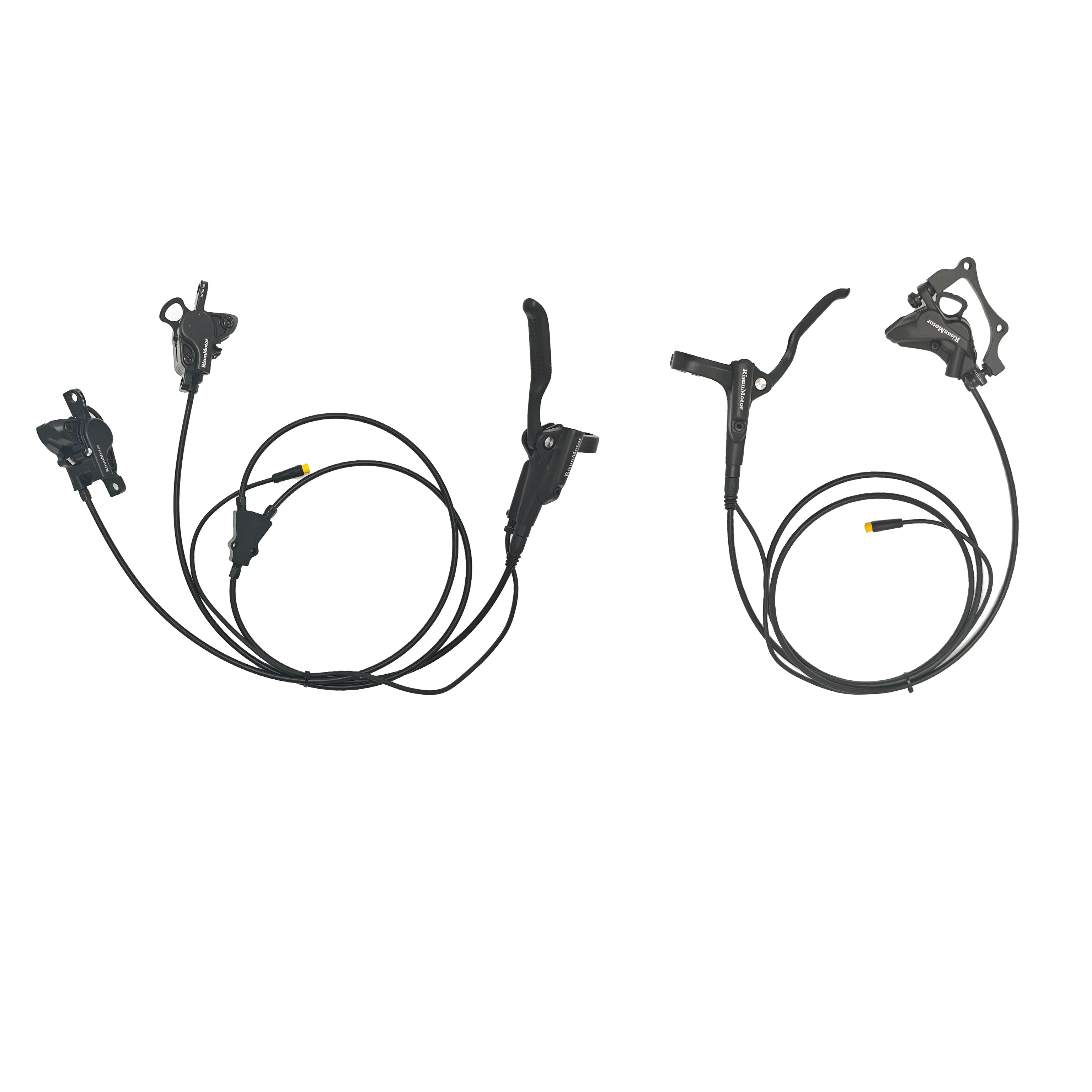

Parts including:

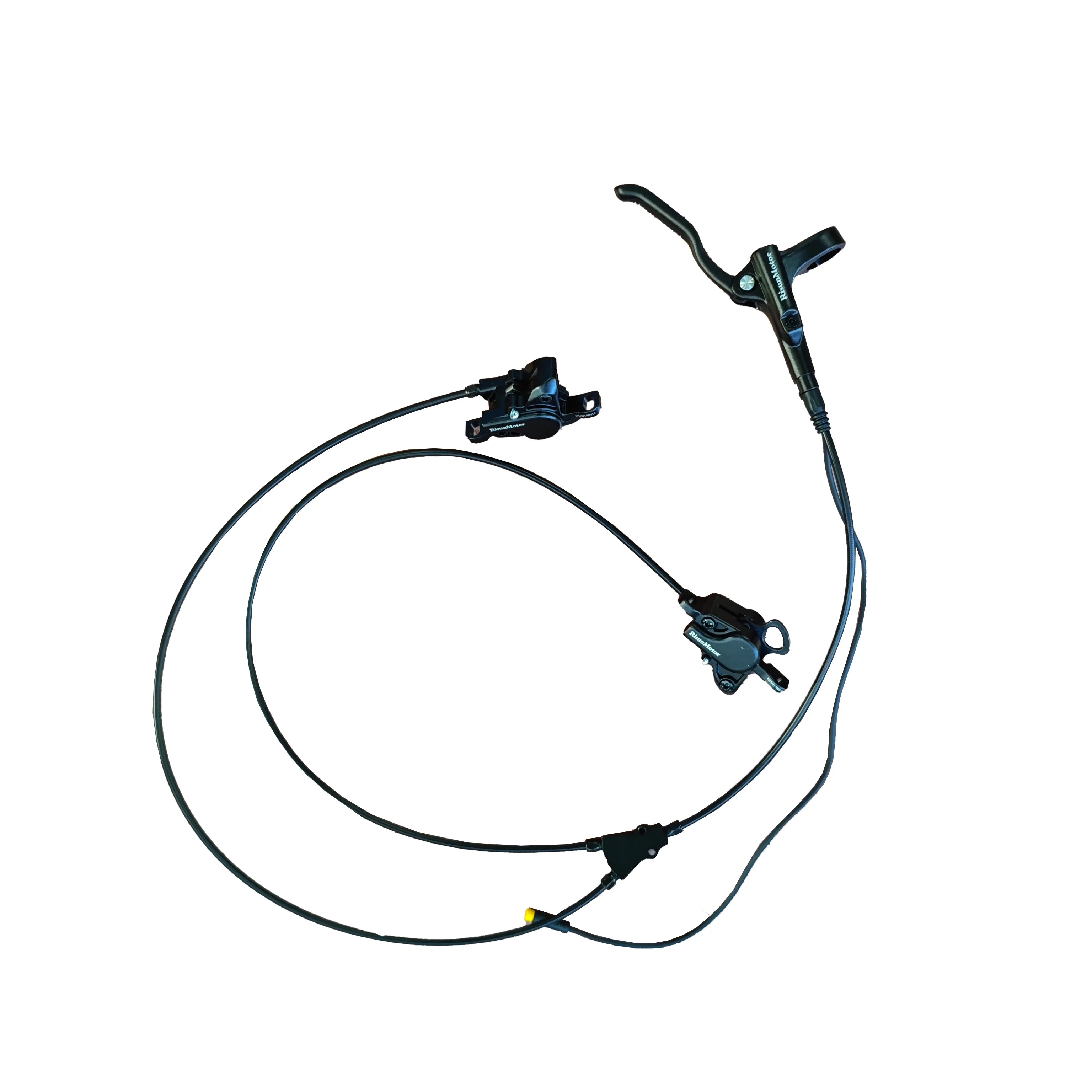

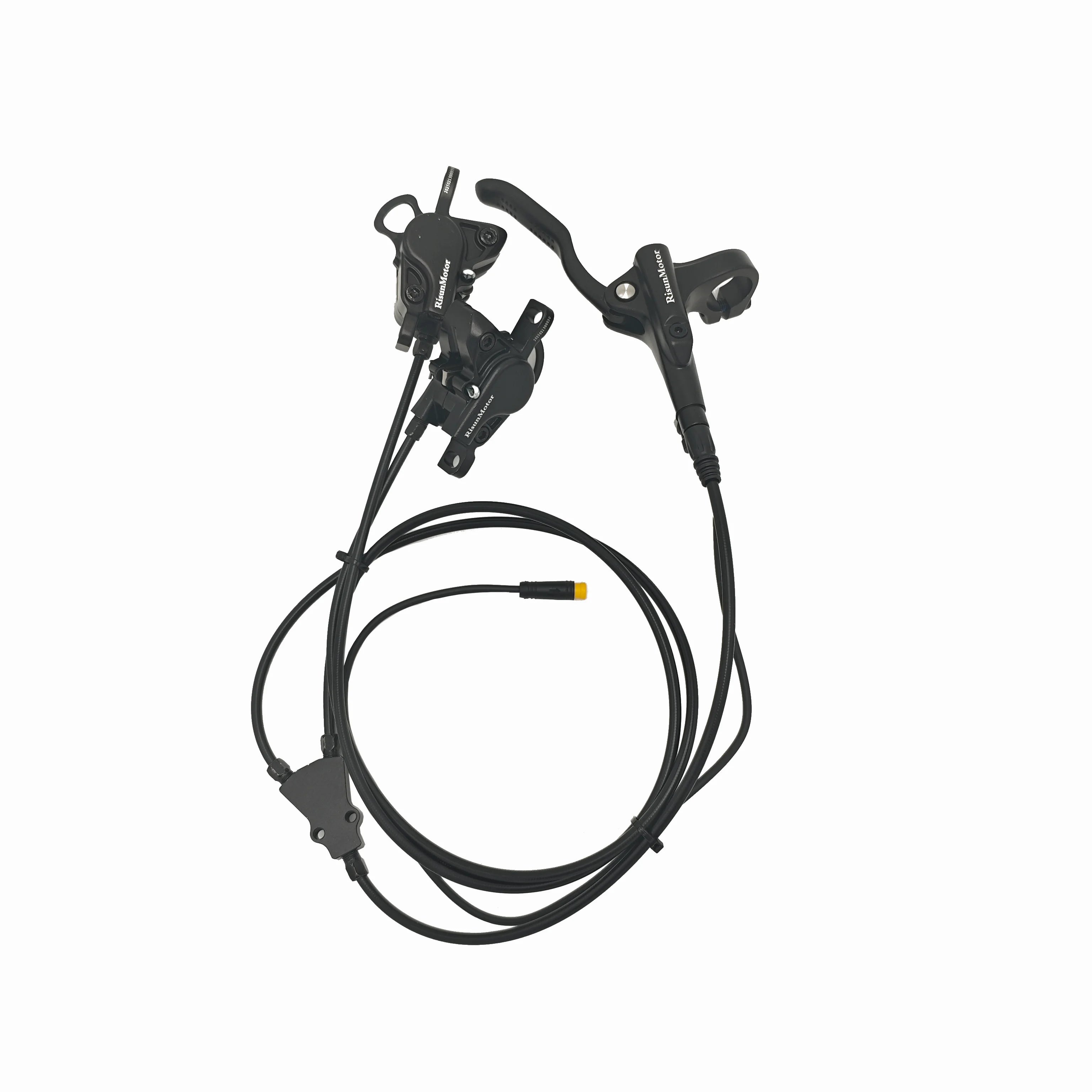

1. 1 x Right Side Brake Lever with front dual calipers, power cut off cable with 3-pin male quick release connector;

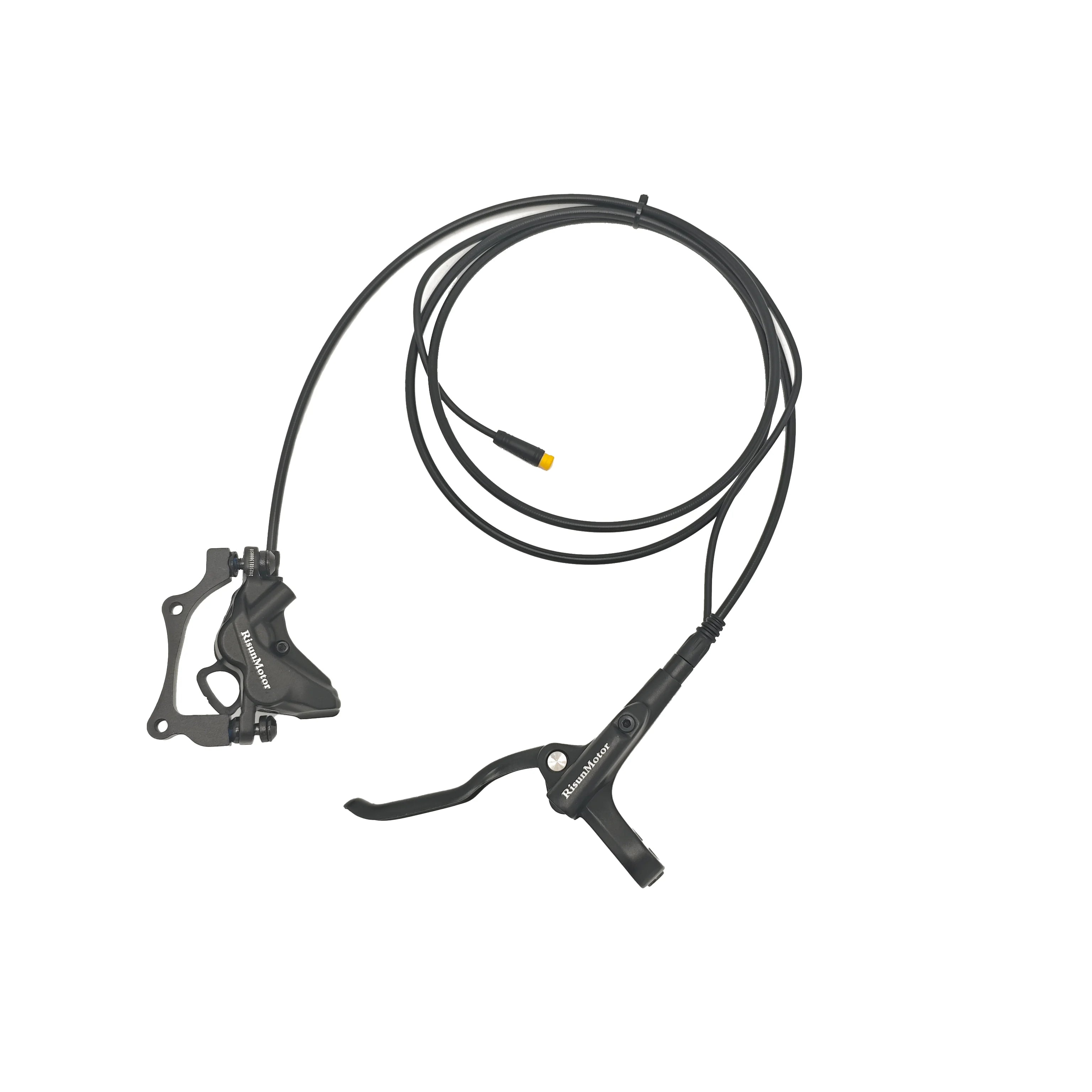

2. Left Side Brake Lever with rear caliper, power cut off cable 3-pin male quick release connector;

3. 2 pcs Adapter Wires (from 3-pin male quick release connector to SM-2A 2-pin male plug);

4. 2 pcs Front PM-180mm Adapters;

5. 1 pc Rear IS-180mm Adapter;

6. 10 pcs caliper adapter screws

Specification:

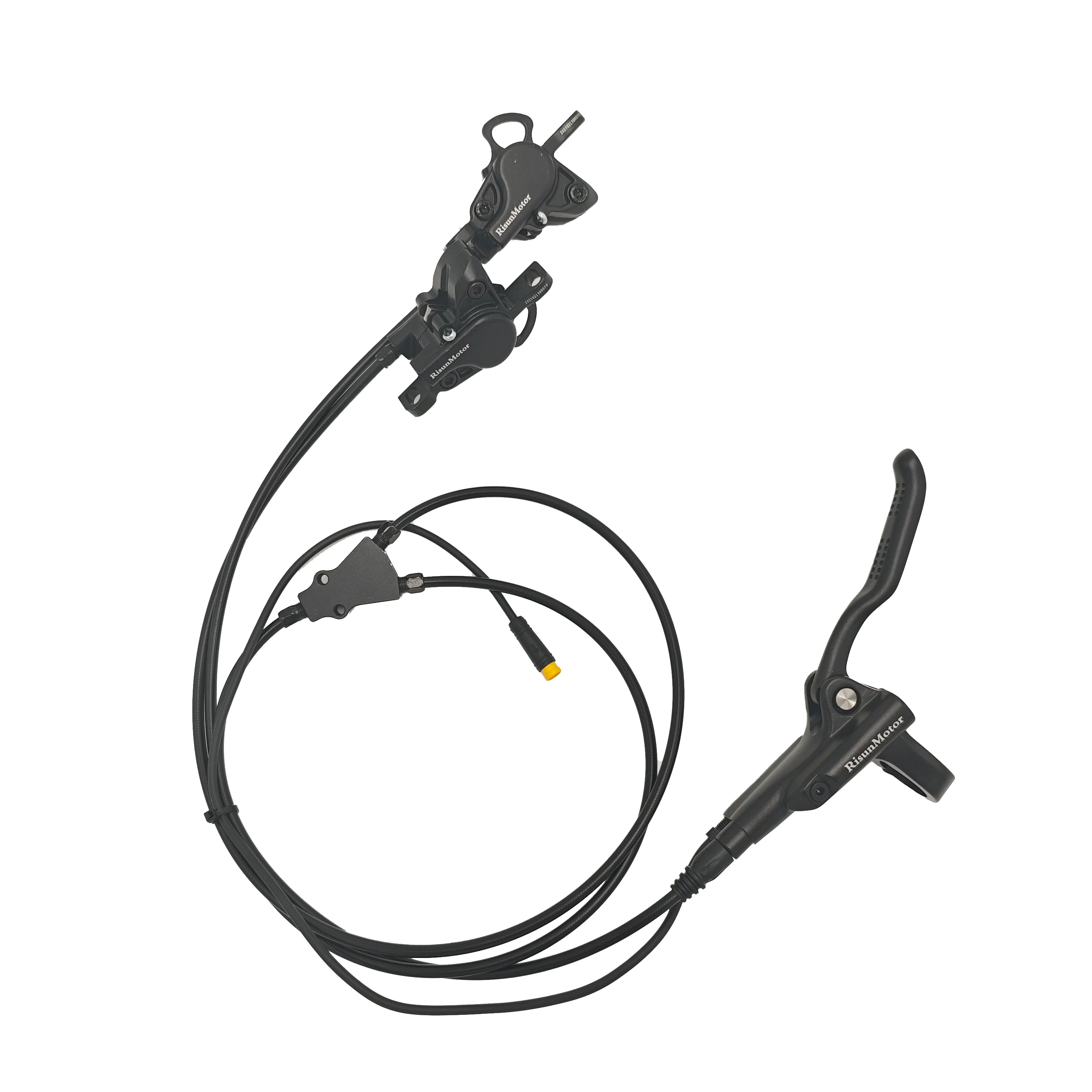

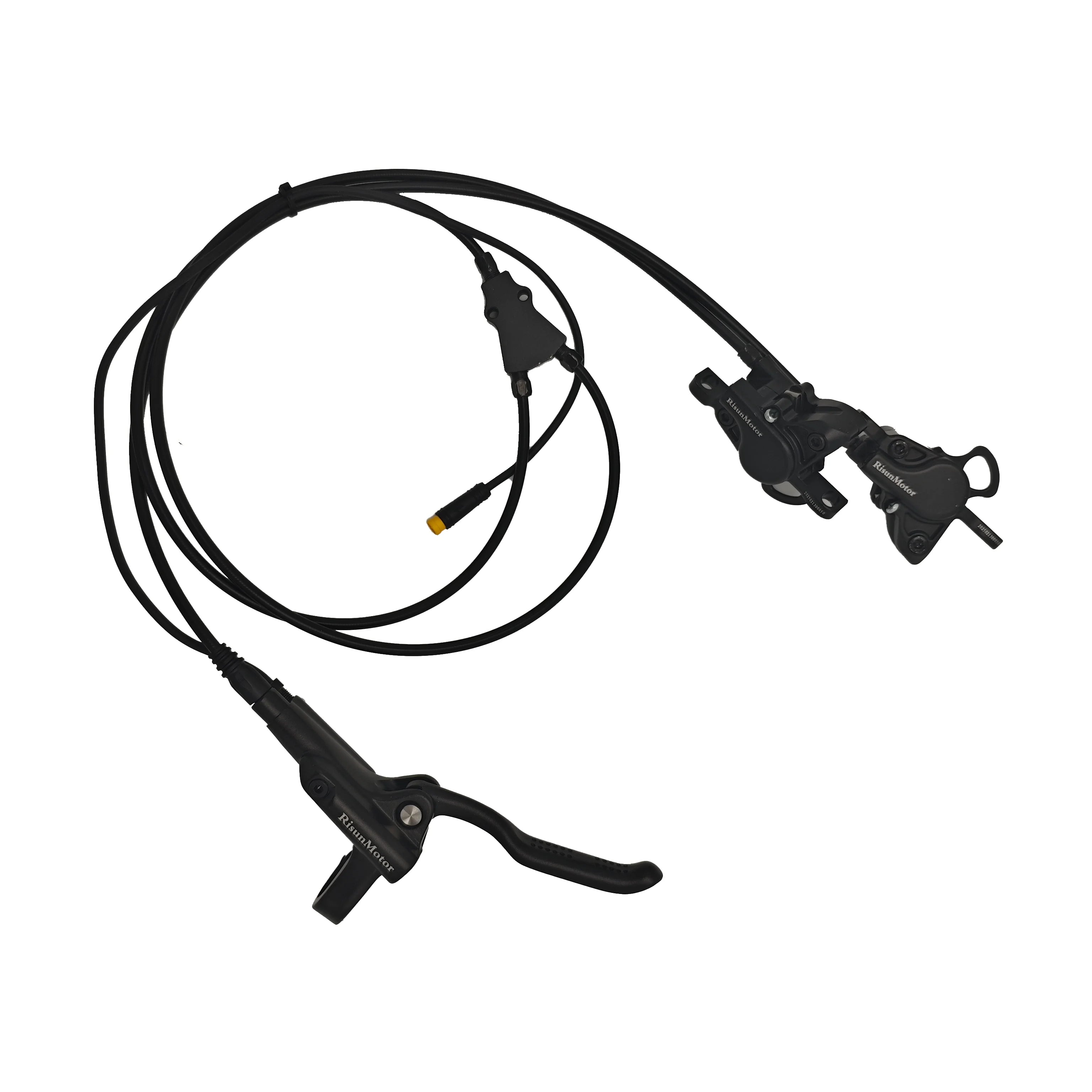

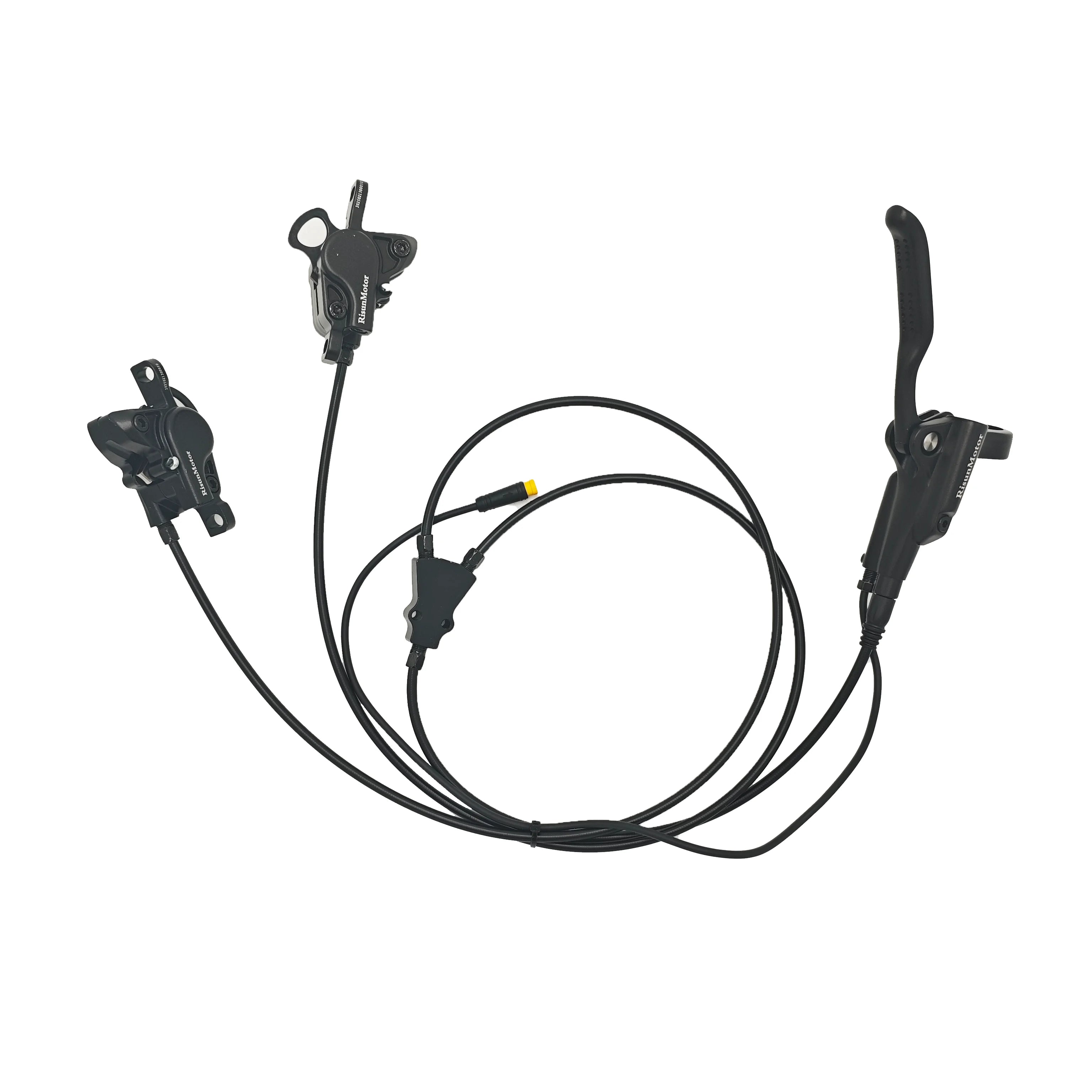

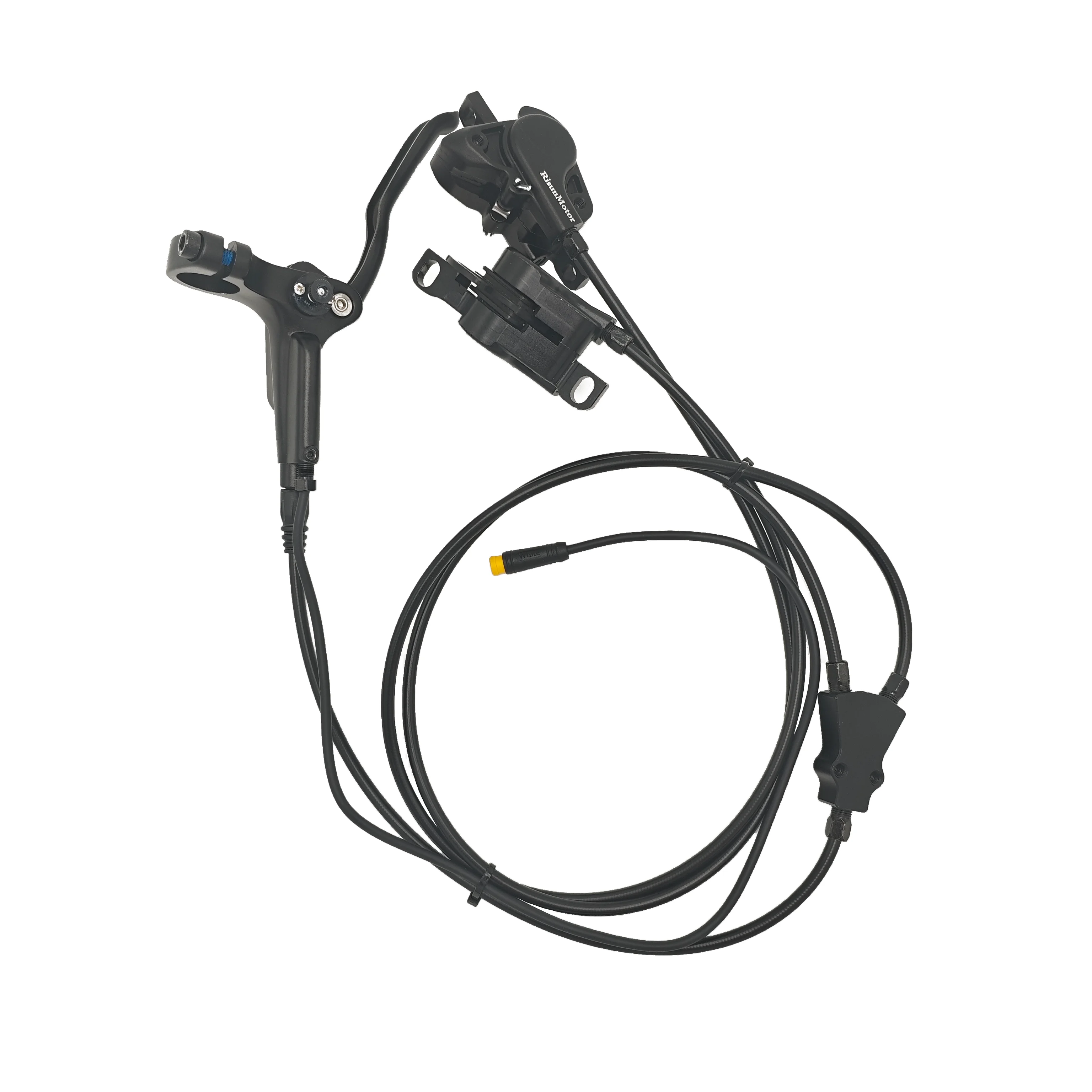

1. Right Brake Lever: 2-piston Dual Front Calipers (left and right side) with Parking Button;

2. Dual Front hose length: From Brake Lever to Splitter is 30cm, from Splitter to each caliper is 65cm;

3. Left Brake Lever: 4-piston Rear Caliper, with Parking Button, rear hose length: 160cm

4. Power cut off cable plug and length (with quick release connector): 3-pin male quick release waterproof plug, length is 49cm

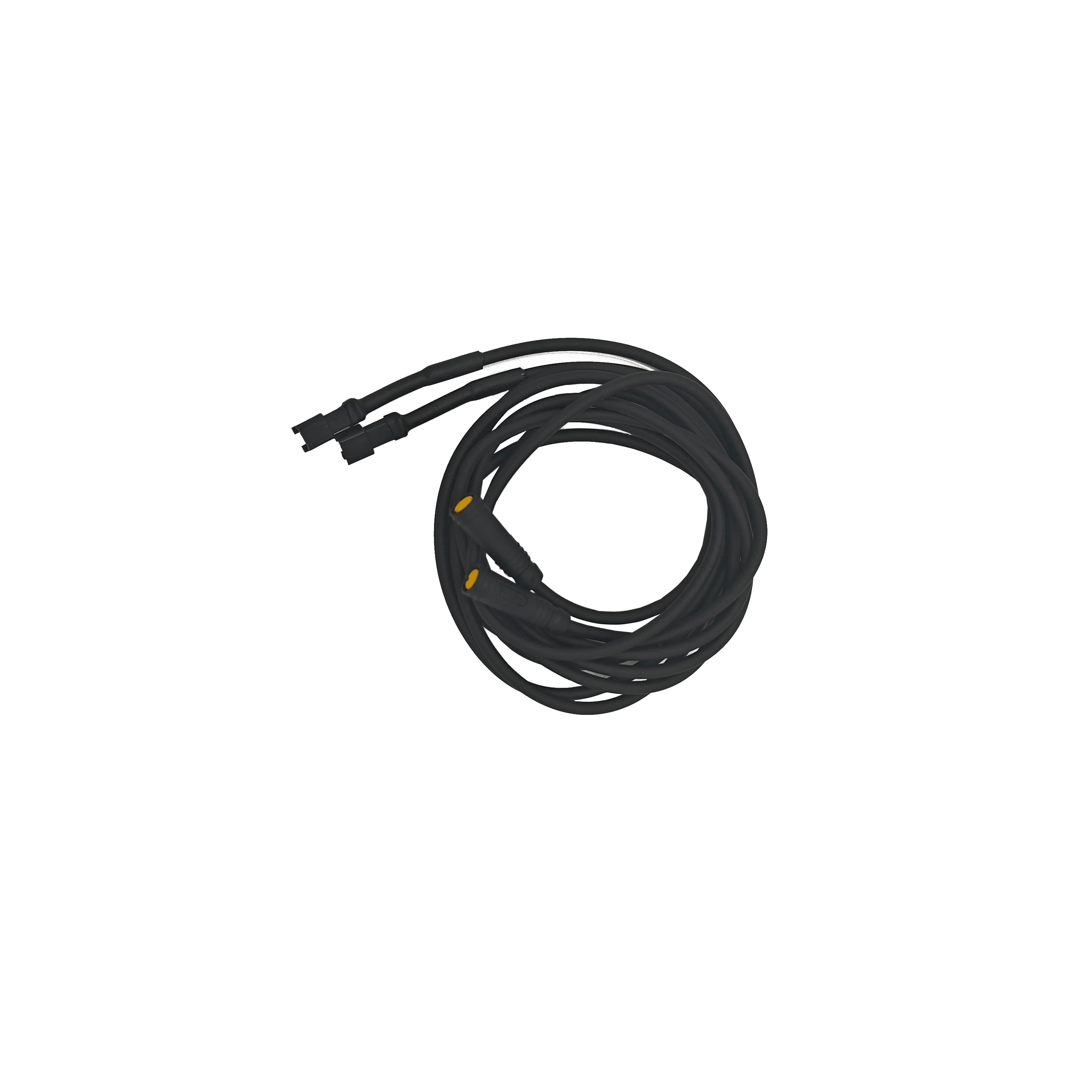

5. Adapter wires length (from 3-pin male quick release connector to SM-2A 2-pin male plug): 114cm

6. Brake Pads: Front dual 2-piston calipers match with Shimano D01S brake pads, rear 4-piston caliper match with Shimano D03S brake pads
